| Category | Details |
|---|---|

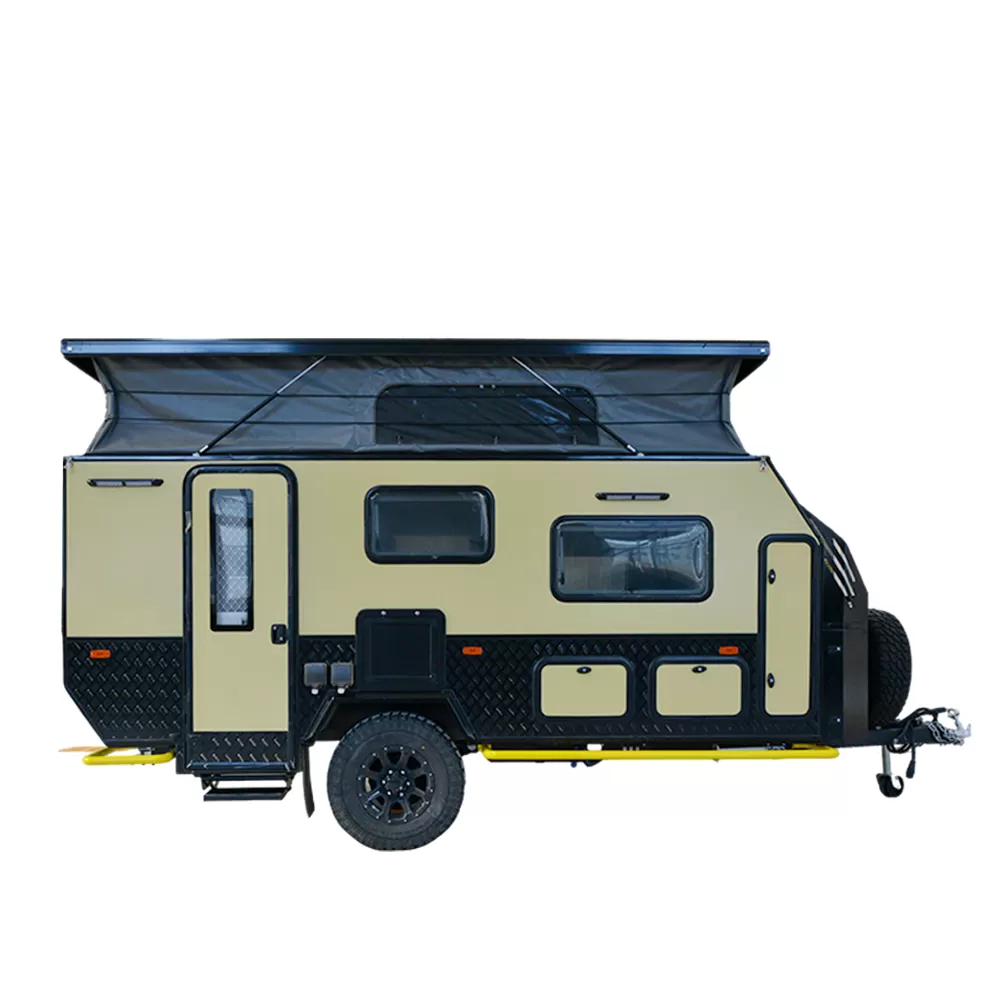

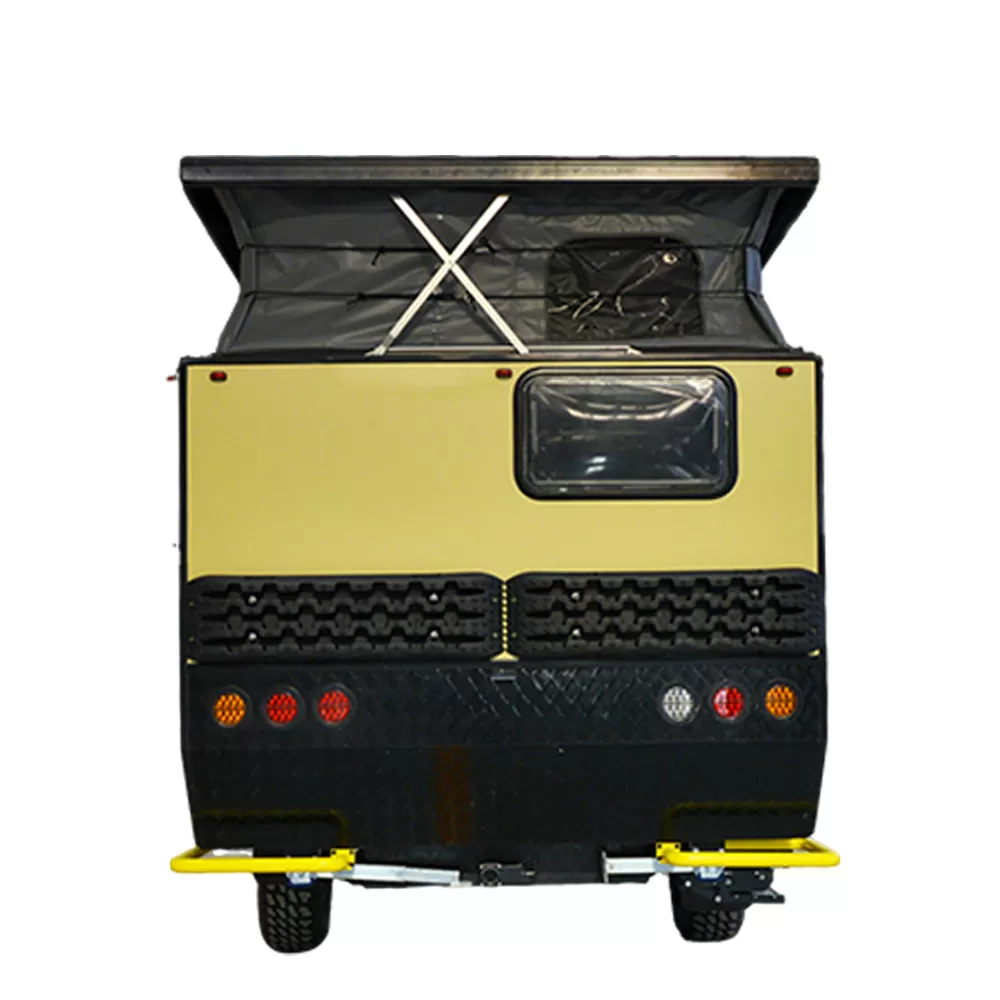

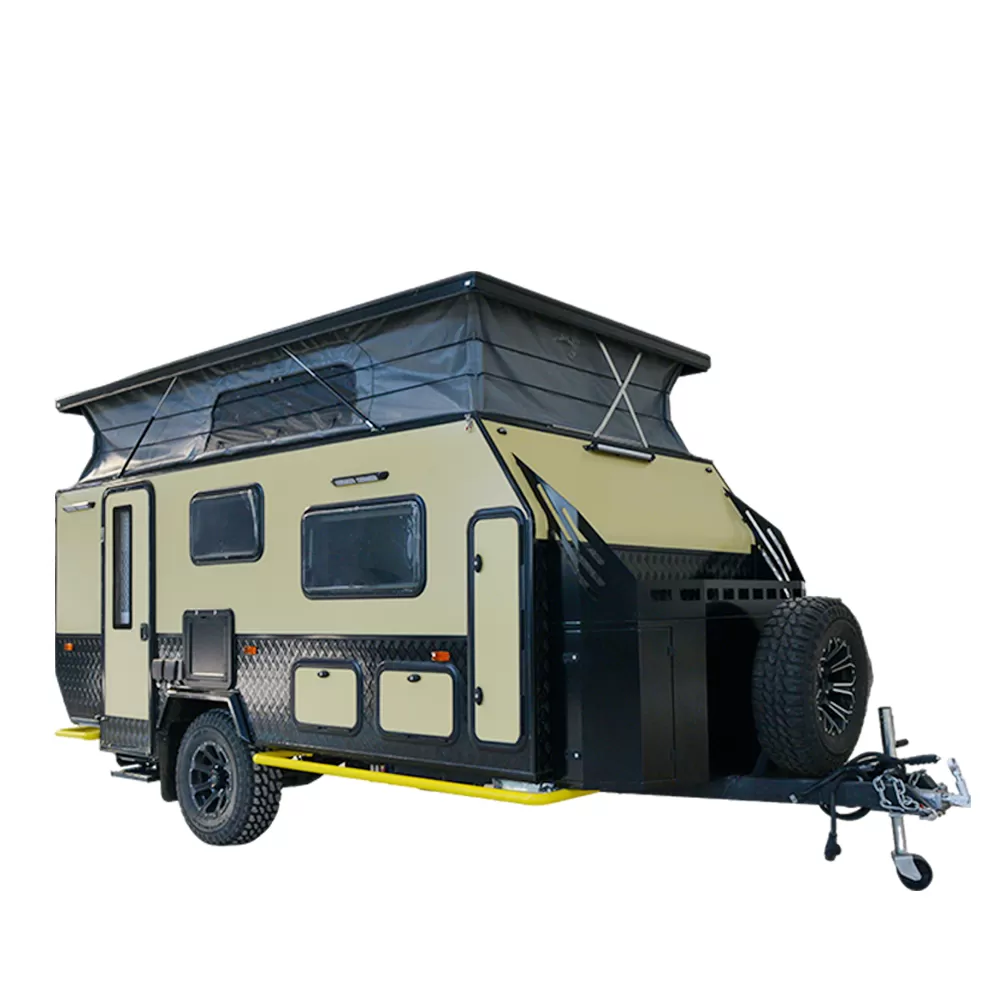

| Dimensions | L 5650×W 2150×H 2530-2990mm (18.5×7×8.3-9.8 ft) |
| Weight | Dry: 1750kg / ATM: 2400kg |
| Body | Sandwich composite panels + European-style door |
| Power/Water | 200Ah battery + 2000W inverter + 100L freshwater/80L greywater tanks |
| Climate | 1HP household AC + automatic cooling system + electric ventilator |
Conquer Terrain. Defy Limits.

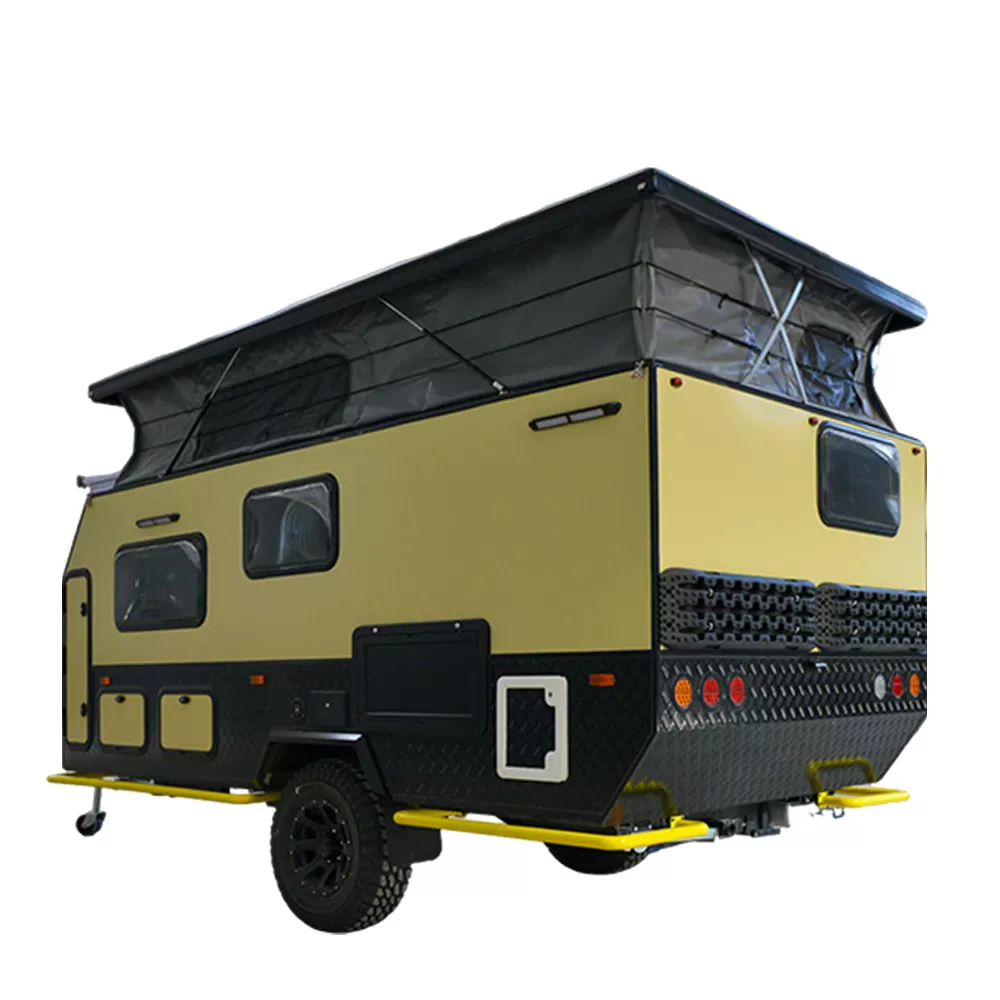

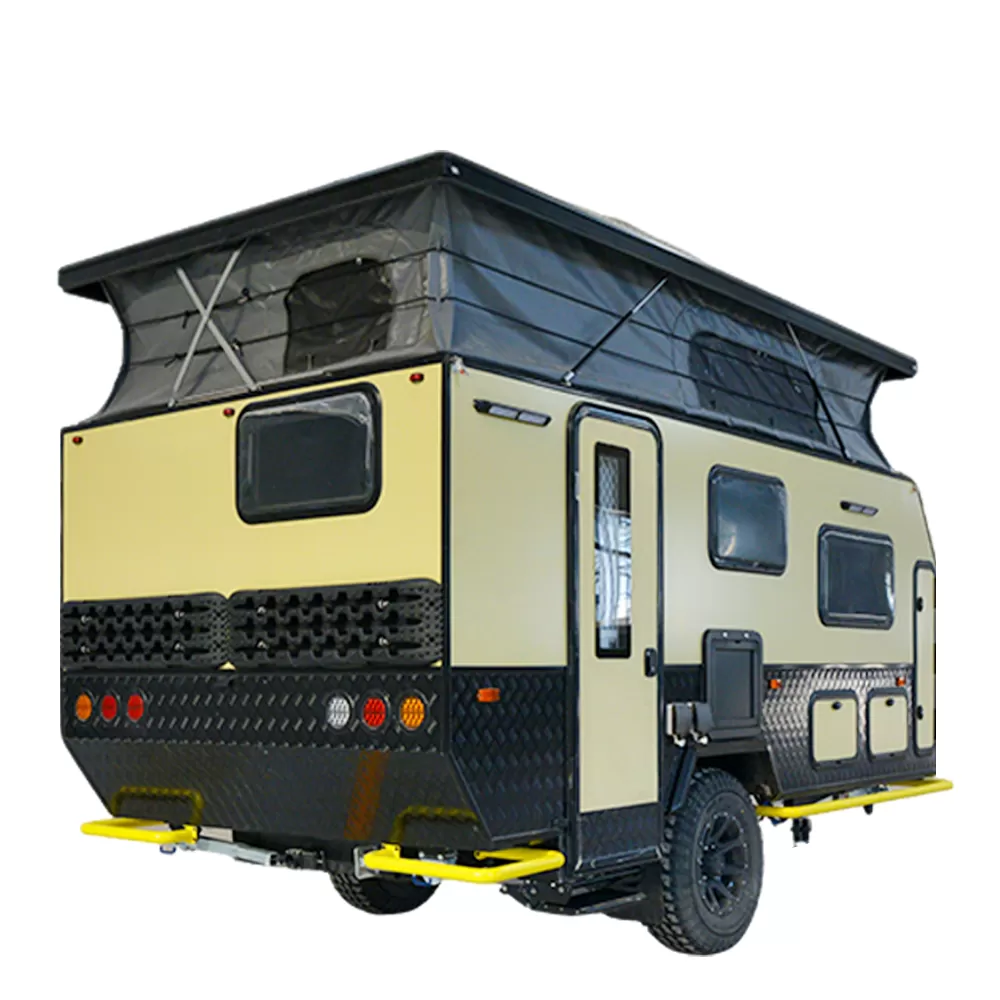

Garage-Friendly Height: Collapses to 2340mm (7.7 ft) — fits standard garages!
Instant Space Expansion: Manual lift mechanism boosts height to 2990mm (9.8 ft) for full-standing comfort.
Height Limitation Master: Navigate low bridges/forest trails with 410mm ground clearance.
Extreme Terrain Ready: Galvanised chassis + 360° off-road coupler + 12" electric brakes.
All-Weather Traction: 15" alloy wheels with 215/75R15 off-road tyres + independent suspension.
Stable Camp Setup: 4 stabilizer legs + 2m side awning + rubber mudguards.

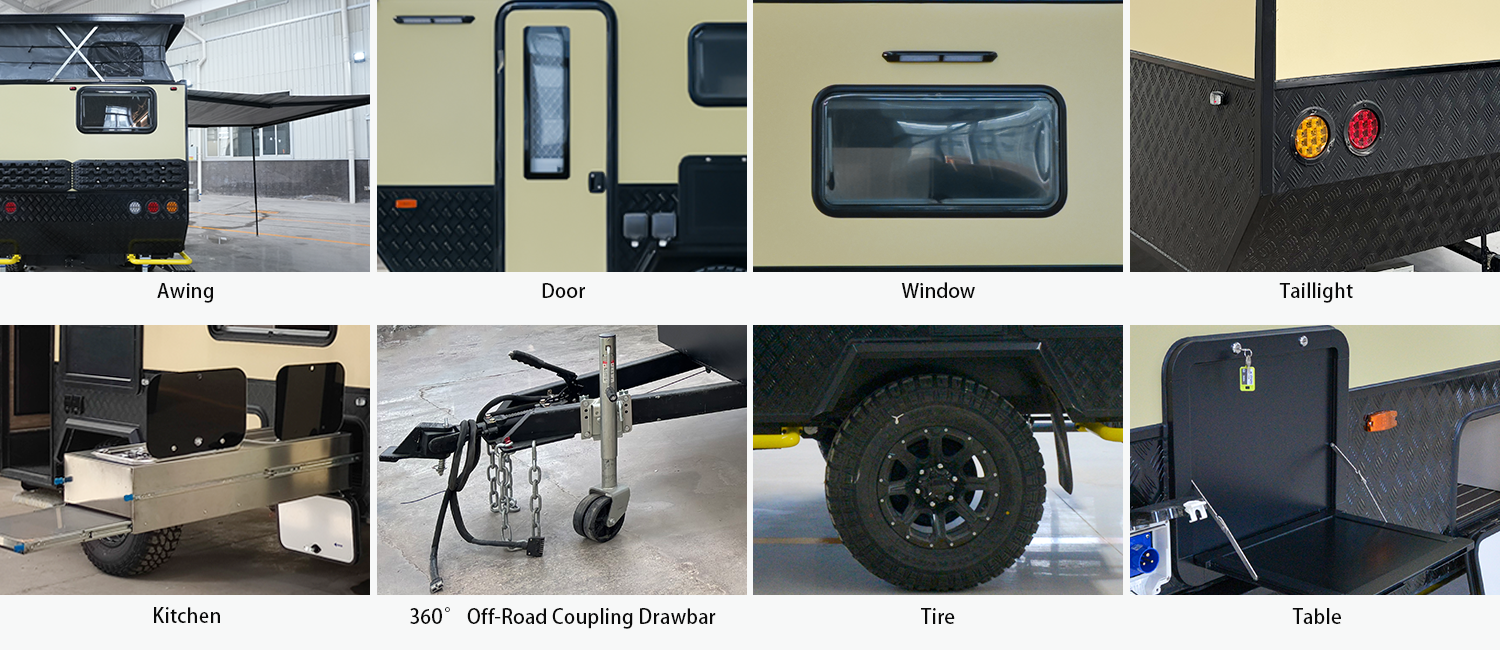

| Standard Configuration Introduction | |||
| Chassis&Body | Chassis | Galvanised | |
| Coupler | 360 ° Off-road Coupler | ||
| Connector | 7-pin Wire Connector | ||
| Brake | 12'' Electric brakes with Hand Brake | ||
| Retainer | Safty Chain | ||
| Wheels&Tyres | 15” Alloy Wheels with 215/75R15 Off Road Tyres | ||
| Suspension | Single axle independent suspension | ||
| Jockey Wheel | Adjustable guide wheel | ||
| Stabilizer Leg | Support Leg x4 | ||
| Mudguard | Rubber mudguard | ||
| Body Material | Sandwich composite board structure | ||
| Pop Top | Manual lifting mechanism | ||
| Door | Custom Door with window (European style) | ||
| Window | High thermal insulation acrylic windows | ||
| Awning | 2m Side Awning | ||

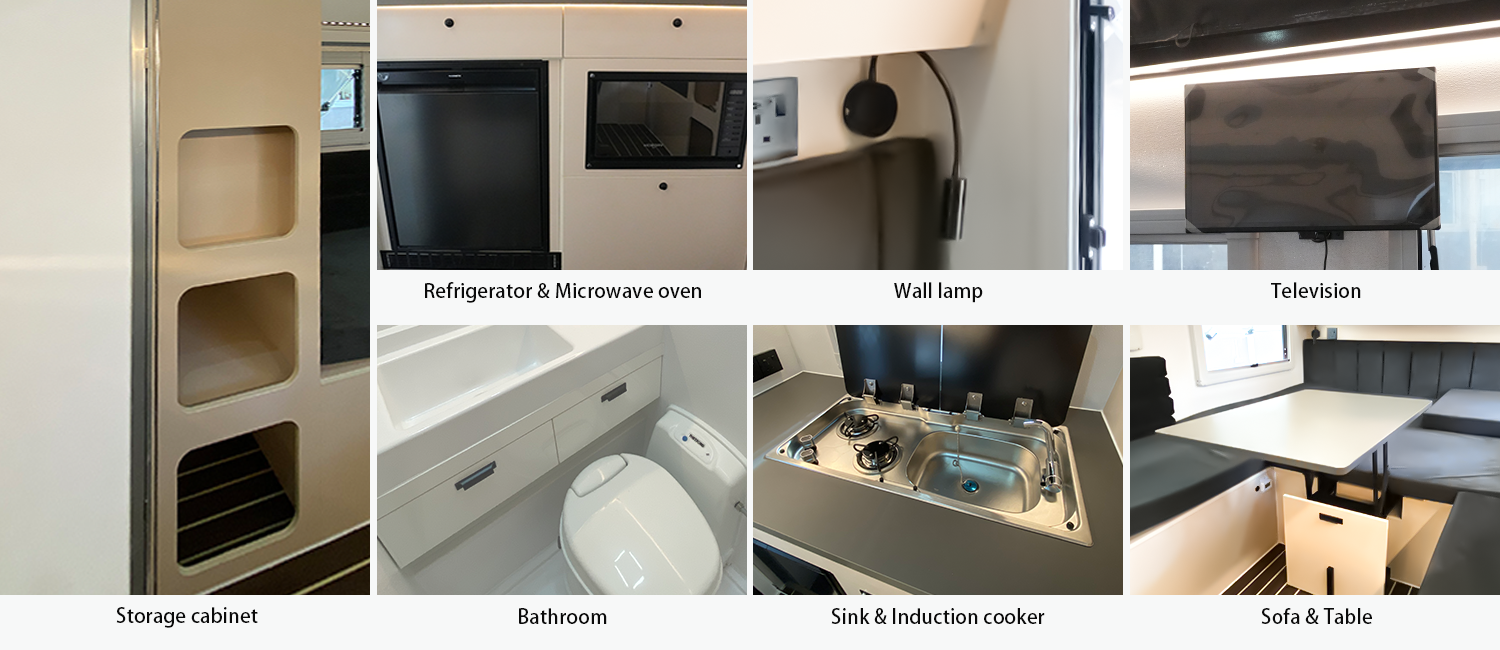

| Interior | TV Bracket | TV folding bracket | |

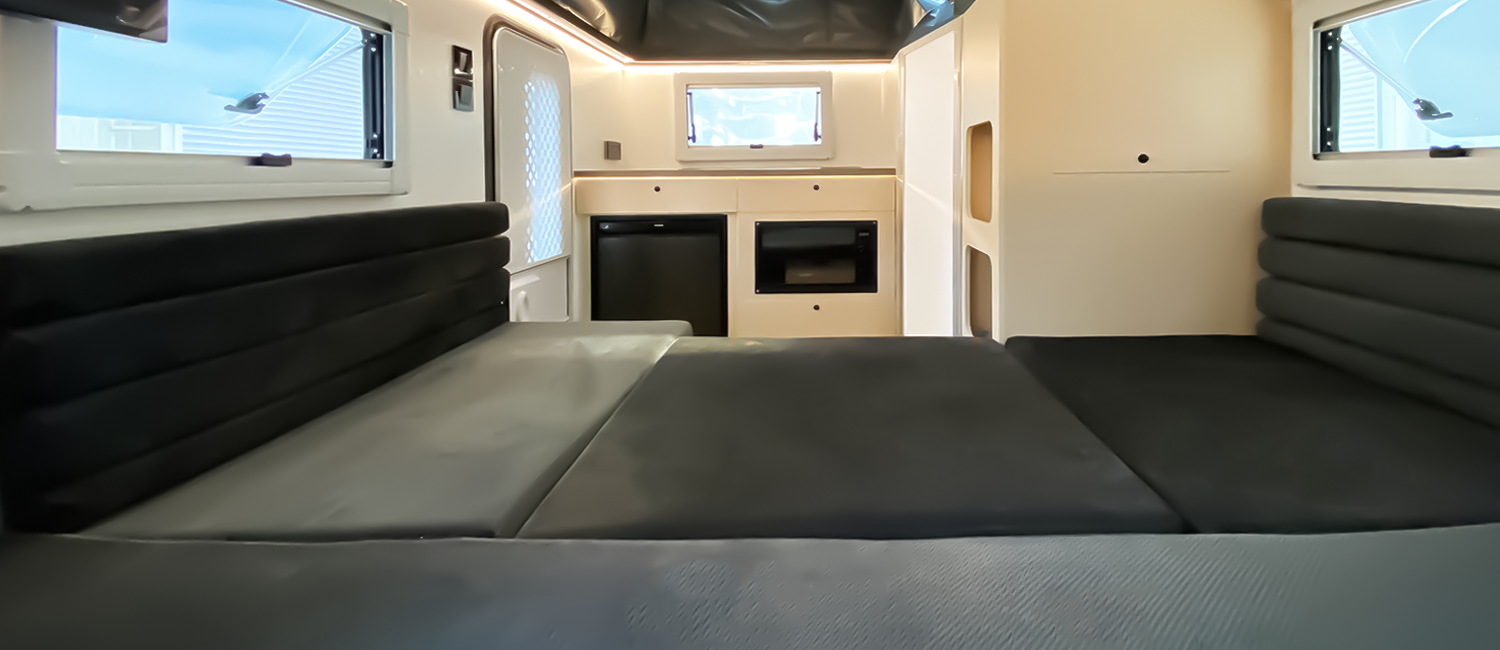

| Sofa and Table | Sofa seat with adjustable table transform to bed 890*1850mm | ||
| Sleeping Area | 1200*2000mm sponge mattress | ||
| Leisure Area and Cabinet | Environmental Friendly Paint Free Board | ||
| Floor | Vinyl Flooring | ||
| Electric System | Battery | 200AH Lead-Acid Battery | |
| Inverter | 2000W Inverter | ||
| Fefrigerator | 12V 100L Refrigerator | ||
| AC | 1Hp Household AC | ||
| Sound System | Internal Audio ×2 | ||
| Ventilator | Electric Ventilator | ||
| Cooling System | Automatic Cooling System | ||
| Control Panel | Rocker Switch | ||
| Lighting | Internal Lighting, LED strip, External Lighting, Trailer lighting | ||
| Socket / USB Socket | 240V Socket, 12V Socket, USB, External city power socket | ||
| Kitchen System | Induction Cooker | 800W Induction Cooker | |
| Gas Stove | External Pull-out Gas Stove with Windbreak | ||
| Gas Bottle Holders | Mount Bracket | ||
| Sink | Stainless Steel Sink With Cover+ Floding Faucet | ||
| Water System | Water Tank & Accessories | 100L Clean Water Tank, 80L Grey Water Tank, Lower Guard Plate Of Water Tank | |
| Water Pump & Accessories | Electric Water Pump, Pressure Stabilizing Pipe | ||
| Bath Room | Shower、Wash basin、Portable Toilet | ||
| Water Heater | 12V 10L Electric Water Heater | ||
| Storage | Storage | Front Multi-Function Storage Box, Throughout Storage Compartment | |
