✅ Family-Sized Adventure - Spacious hybrid layout for groups
✅ All-Terrain Confidence - Independent suspension + off-road tires
✅ Plug-and-Play Freedom - Full kitchen/bathroom pre-installed
✅ Climate Resilience - Arctic to desert ready with heating/AC options
Where Rugged Adventure Meets Family Comfort

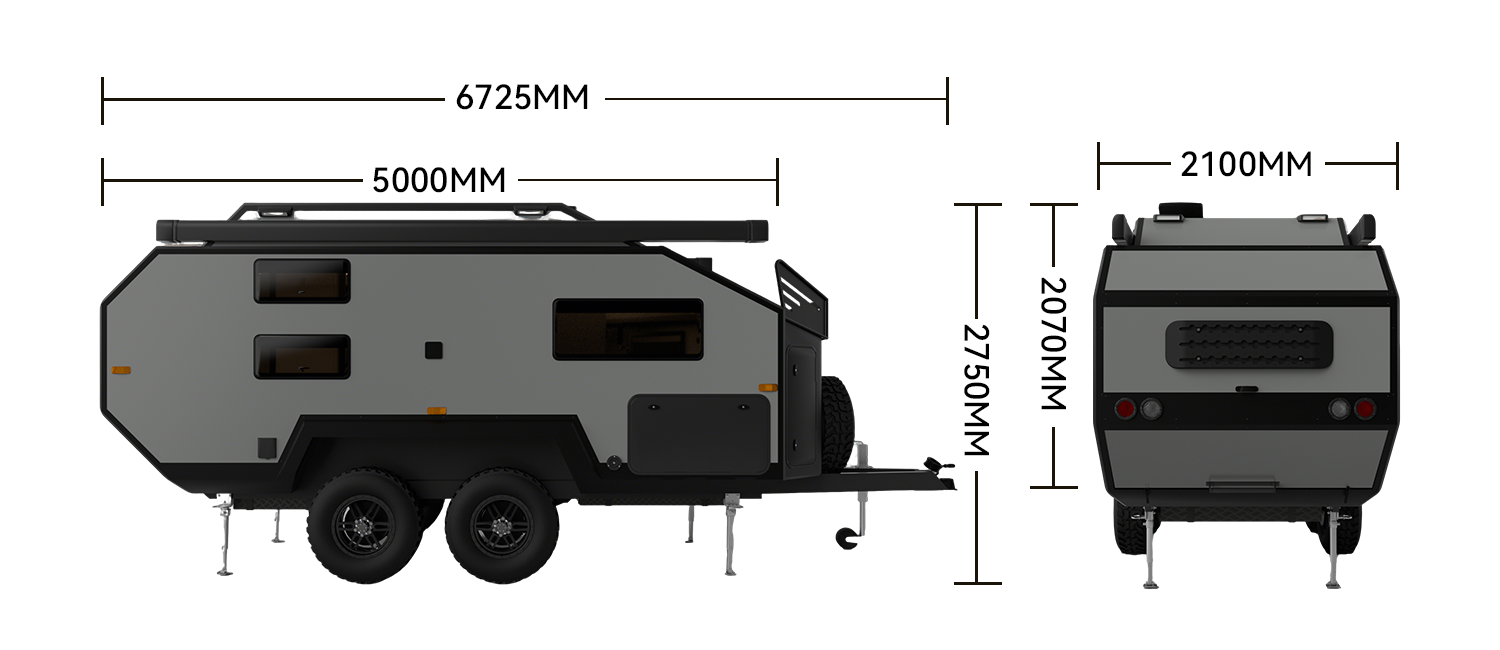

Dimensions
Exterior: 6725×2110×2750mm (22×6.9×9 ft)
Interior Living Space: 5000×1920×2070mm (16.4×6.3×6.8 ft)
Weight Capacity
Dry Weight: 2400kg | Max Load (ATM): 2900kg
Off-Road Prowess
320mm Ground Clearance + 18" Alloy Wheels with 350/60R18 Off-Road Tires
360° Rotating Coupler for Extreme Terrain Maneuvering

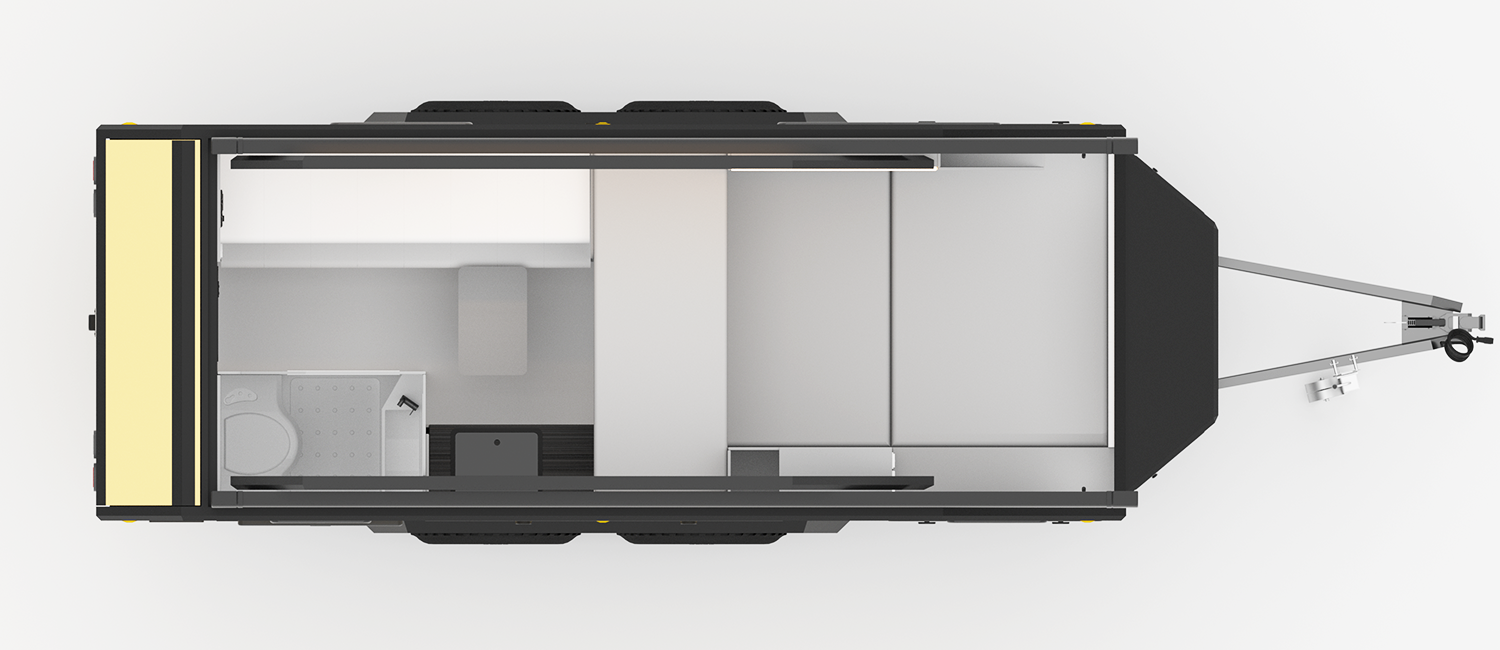

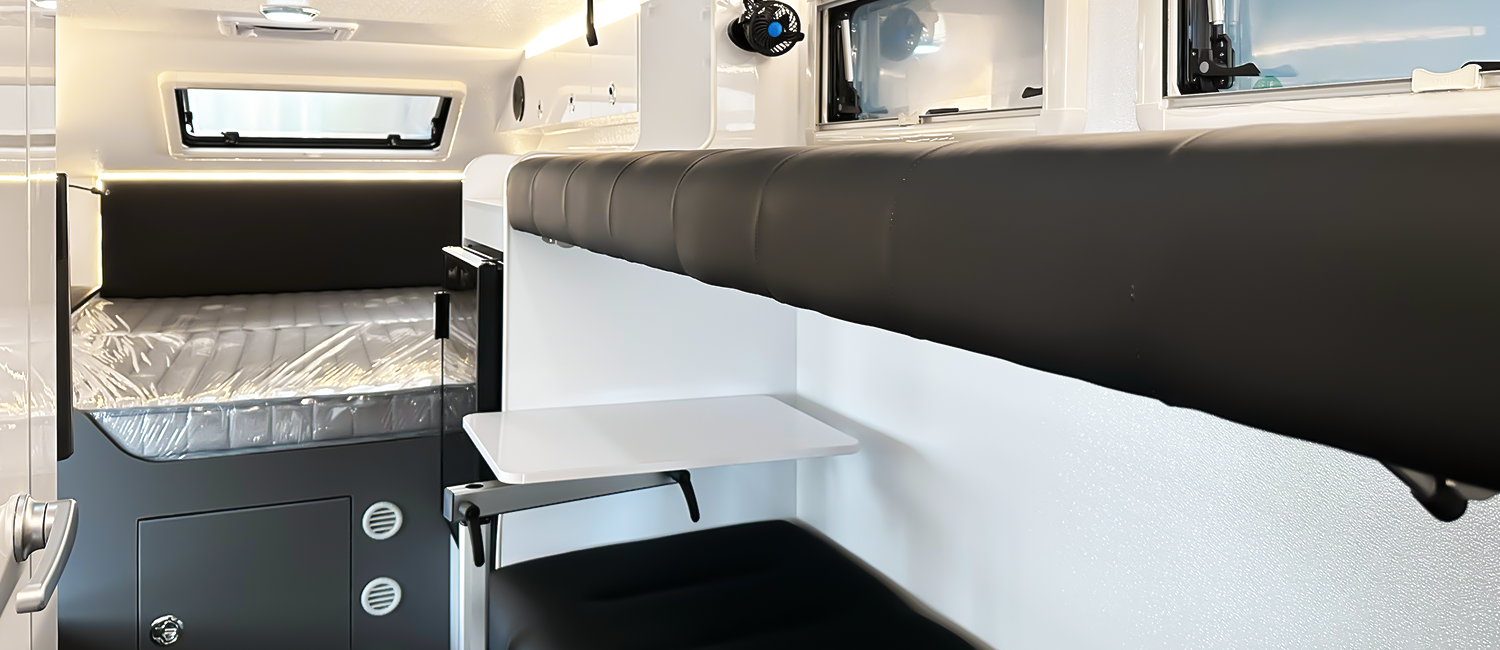

Flexible Living Space

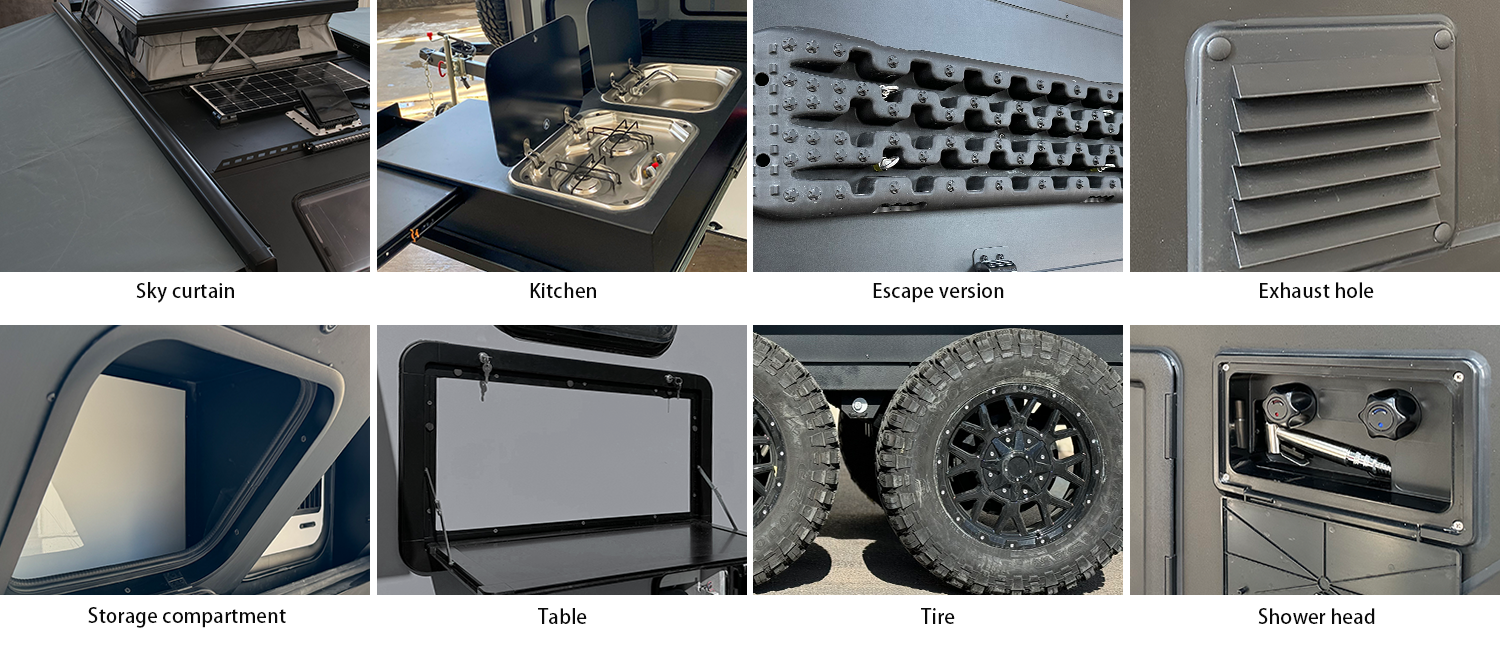

Convertible Kitchen/Bar: Opens to outdoors for simultaneous indoor-outdoor entertainment (PDF亮点)

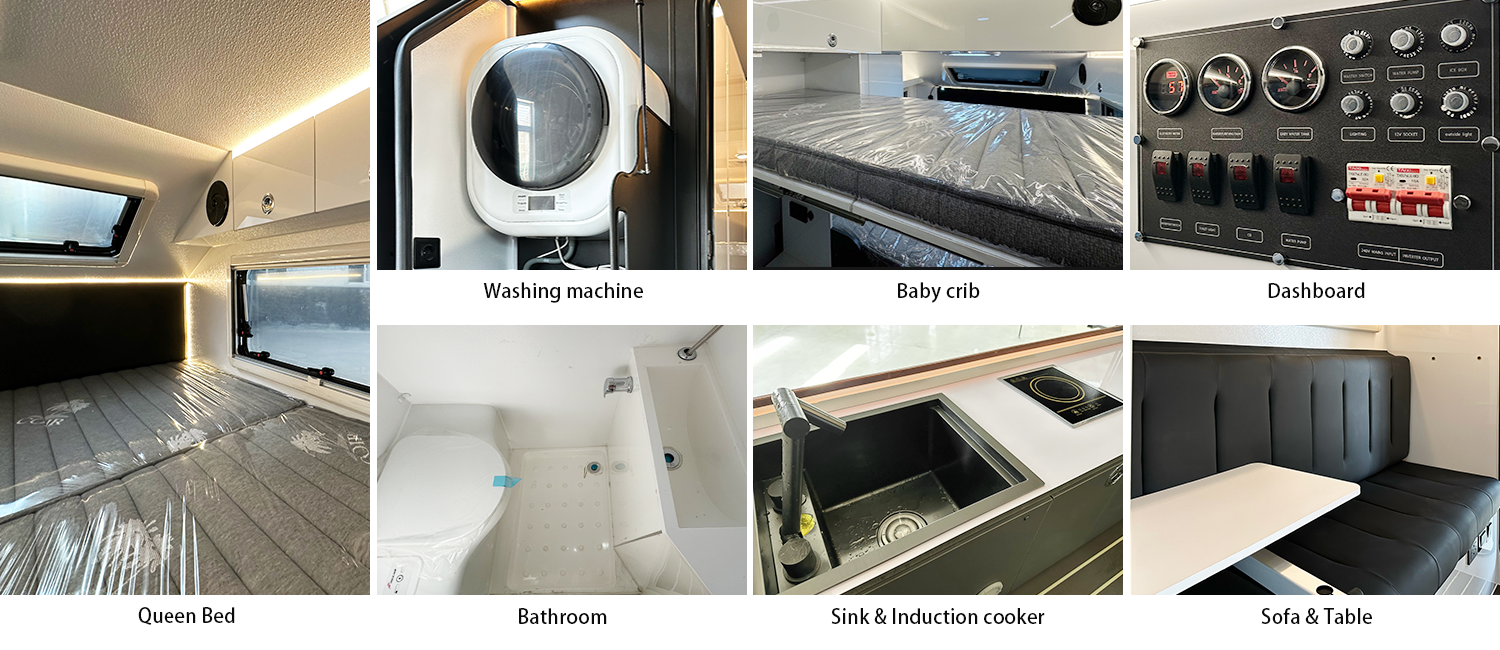

5-6 Person Sleeping: Sponge mattress (1530×2030mm) + convertible sofa bed
Full Bathroom: Fixed toilet + wash basin + external shower port
Self-Sufficient Travel
Water: 200L Fresh + 40L Grey Tanks + 12V 10L Water Heater
Power: 200Ah Battery + 2000W Inverter + 100W Solar Ready
Climate: 1HP AC + Roof Ventilator + Diesel Heating Options
Built for the Wild
Galvanized Chassis + Twin Axles + Independent Suspension
12" Electric Brakes + 4× Stabilizer Legs + 2× Smoke Alarms
| Standard Configuration Introduction | ||
| Chassis&Body | Chassis | GALVANISED |
| Coupler | Off-ROAD COUPLING 360° | |
| Connector | 7/13-PIN WIRE CONNECTOR | |
| Brakes | 12''ELECTRIC BRAKES WITH HAND BRAKE | |
| Retainer | SAFTY CHAINS*2 | |
| Wheels &Tyres | 18”ALLOY WHEELS WITH 350/60R18 OFF ROAD TYRES | |
| Body | SANDWICH COMPOSITE BOARD STRUCTURE | |
| Axle | TWIN AXLES | |
| Suspension | INDEPENDENT SUSPENSION | |
| Jockey Wheel | ADUSTABLE GUIDE WHEEL | |
| Stabilizer Leg | STABILIZER LEG *4 | |
| Awing | 4.5M SIDE AWNING * 2 | |
| Mudguard | RUBBER MUDGUARD | |
| Interior | Sofa | UPHOLSTERED CONVERTIBLE BED |
| Sleeping Area | SPONGE MATTRESS 1530×2030MM | |
| Leisure area and Cabinet | ENVIRONMENTAL FRIENDLY PAINTFREE BOARD | |
| Floor | VINYL FLOOR | |
| Electric System | Battery | 200AH LEAD ACID BATTERY |
| Inverter | 2000W INVERTER | |
| Refrigerator | 12V 66L REFRIGERATOR | |
| AC | 1Hp HOUSEHOLD AC | |
| Sound System | INTERNAL AUDIO*2 | |
| Fan | ELECTRIC FAN | |
| Exhaust fan | TOP ROOF VENTILATOR | |
| Control panel | ROCKER SWITCH | |
| Lighting | INTERNAL LIGHTING, EXTERNAL LIGHTING | |
| Socket / USB Socket | 240V SOCKET, 12V SOCKET, USB | |
| Kitchen Systems | Gas Bottle Holders | MOUNT BRACKET |
| Gas Stove | DOUBLE-HOLES GAS STOVE | |
| Sink | STAINLESS SINK+FOLDING FAUCET | |
| Water Systems | Water tank | 200L CLEAN WATER TANK +40L GREY WATER TANK |
| Water punp | 12V ELECTRIC WATER PUMP | |
| Water heaters | 12V 10L ELECTRIC WATER HEATER | |
| Bathroom | WASH BASIN, FIXED TOLIETS | |
| Other Functions | Storage | FRONT STORGE BOX |
| ROOFTOP CARGO RACK | ||
| INTERIOR MULTIFUNCTIONAL STORAGE CUPBOARD WITH THROUGH STORAGE COMPARTENT | ||
| Alarm Apparatus | SMOKE ALARM *2 | |
