Dimensions: 4120×1780×1886mm (Compact footprint, superior off-road clearance)
Ground Clearance: 470mm (18.5 inches)
Dry Weight/ATM: 660kg / 1000kg (Lightweight yet robust)
Shipping: 3-4 units per 40HQ container (Global logistics-ready)
Warranty: 3-year body/chassis + 1-year accessories
Durable Frame: Galvanized chassis + independent suspension.
Off-Road Ready: 360° coupler, 16” alloy wheels with 265/75R16 off-road tires, electric brakes.
Weatherproof Design: Composite insulated walls, manual pop-top roof (1940mm max height), high-insulation acrylic windows.
Secure Setup: Adjustable jockey wheel, rear stabilizer legs, rubber mudguards.
Sleeps 4: Queen bed + convertible sofa seating.
Eco-Conscious: Paint-free cabinets, vinyl flooring.
Kitchen & Water:
External pull-out gas stove + windbreak.
117L freshwater tank + 12V electric pump.
10L electric water heater + stainless steel sink.
Power Management:
100AH lead-acid battery + 12V/240V/USB/Type-C sockets.
External city power compatibility.
Security: Carbon monoxide sensor, safety chains.
Lighting: Internal/external LED + trailer lights.
Storage: Front cargo box + under-sofa compartments.
| Standard Configuration Introduction | |||
| Chassis&Body | Chassis | Galvanised | |
| Drawbar | 360 ° Off-road Coupler | ||
| Plug | 7-pin /13pin Wire Connector | ||
| Brakes | 10'' Electric brakes with Hand Brake | ||
| Retainer | Safty Chain | ||
| Wheels&Tyres | 16” Alloy Wheels with 265/75R16 Off Road Tyres | ||
| Body Material | Sandwich composite board structure | ||
| Suspension | Single axle independent suspension | ||
| Jockey Wheel | Adjustable guide wheel | ||
| Stabilizer Leg | Rear Support Leg x2 | ||
| Mudguard | Rubber mudguard | ||
| Pop Top | Manual Clam shell retractable roof | ||
| Door | Custom Door with window | ||
| Window | High thermal insulation acrylic windows | ||

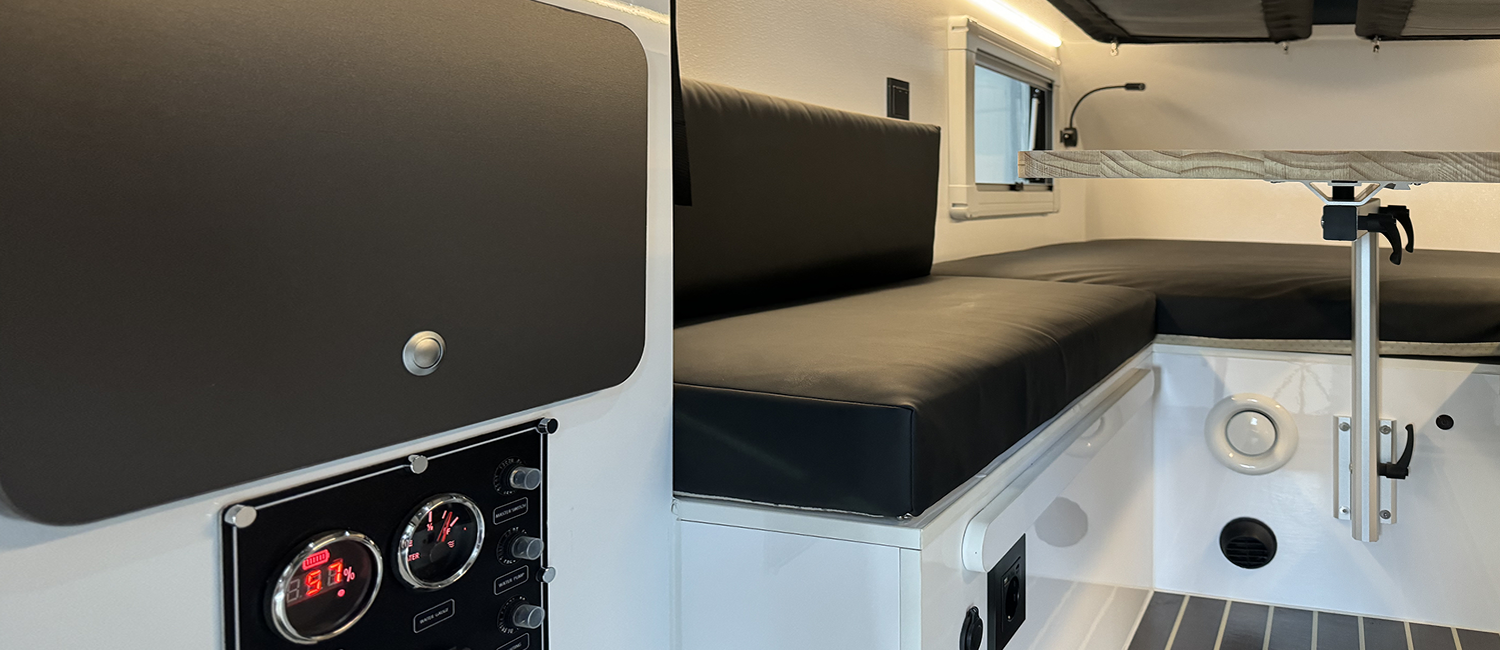

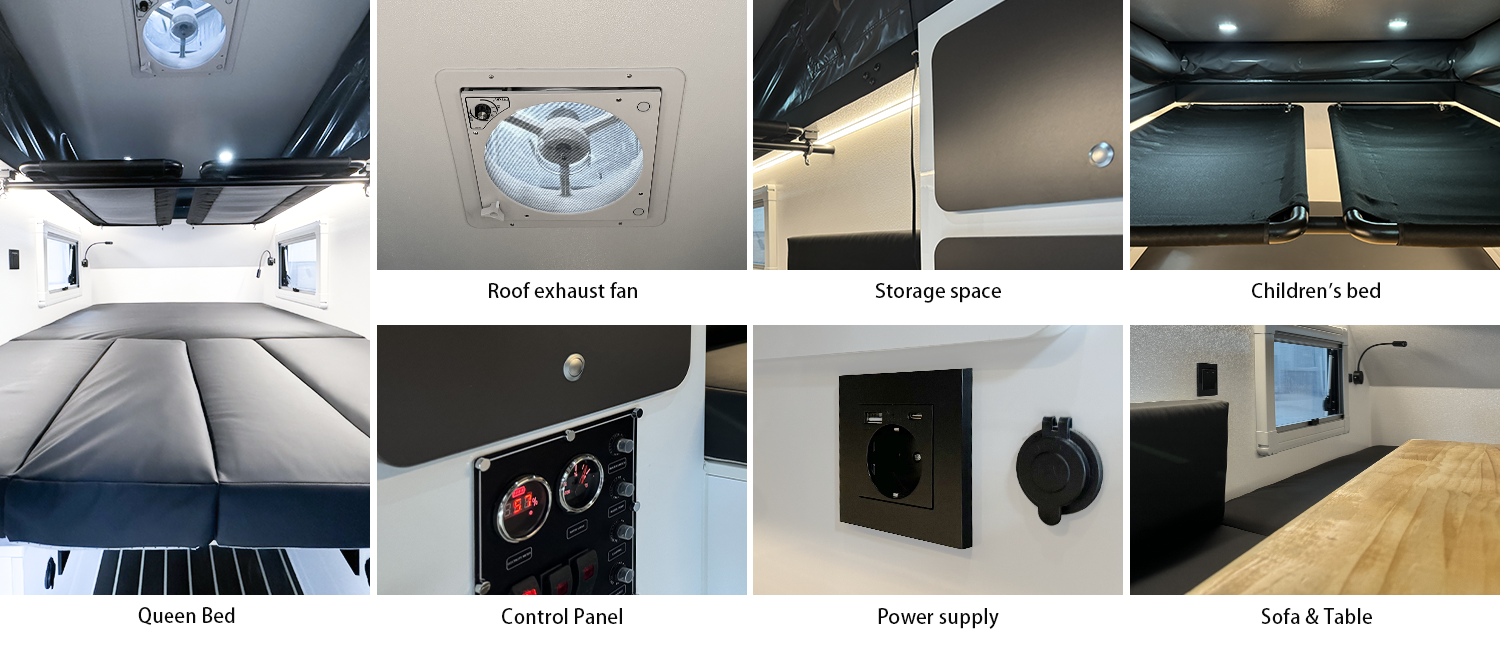

| Interior | Sofa and Table | Wooden swivel table with seating for 4 | |
| Sleeping Area | Queen bed with sponge mattress | ||
| Leisure Area and Cabinet | Environmental Friendly Paint Free Board | ||
| Floor | Vinyl Flooring | ||
| Electric System | Battery | 100AH Lead-Acid Battery | |
| Control Panel | Rocker Switch | ||
| Lighting | Internal Lighting, LED strip, External Lighting, Trailer lighting | ||
| Socket / USB Socket | 240V Socket, 12V Socket, USB, Type-C | ||
| Charger | External city power socket with 12V DC charger | ||

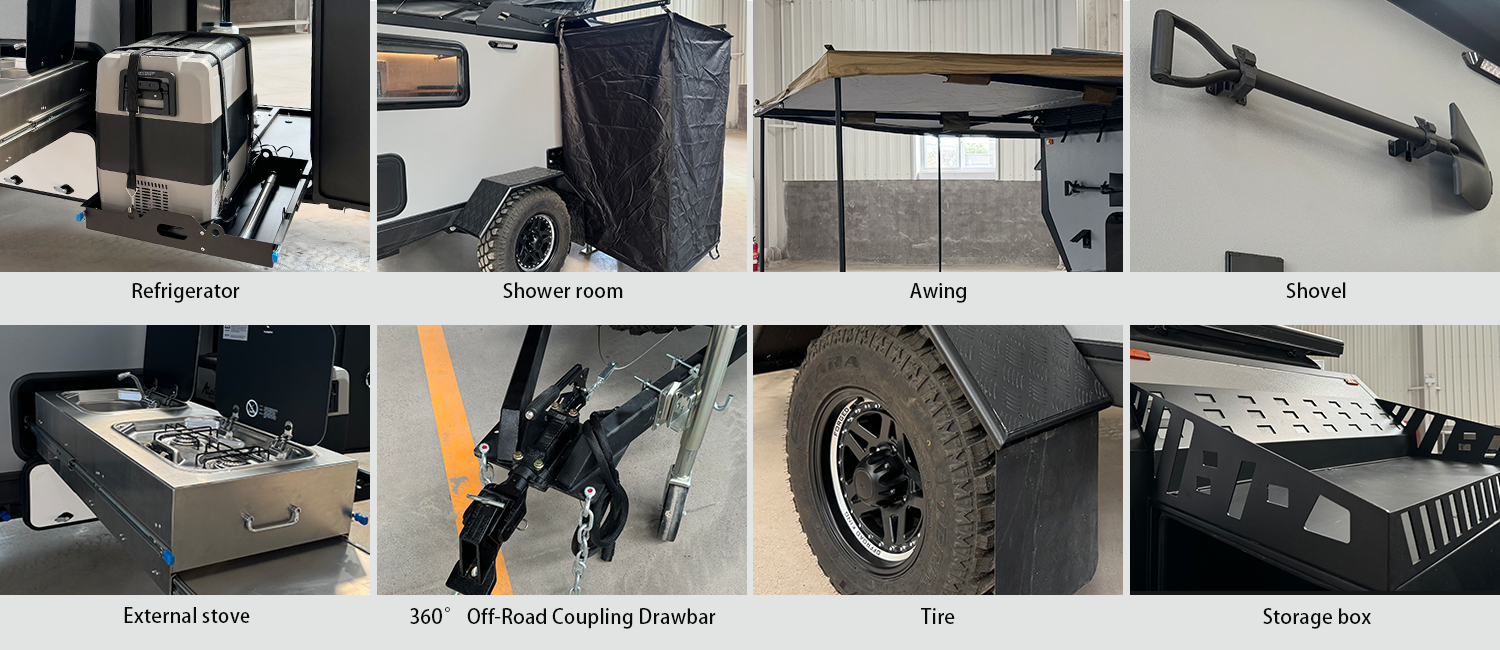

| Kitchen System | Gas Stove | External Pull-out Gas Stove with Windbreak | |
| Gas Bottle Holders | Mount Bracket | ||
| Sink | Stainless Steel Sink With Cover+ Floding Faucet | ||
| Water System | Water Tank | 117L Fresh Water Tank | |
| Water Pump | 12V Electric Water Pump | ||
| Water Heater | 12V 10L Electric Water Heater | ||
| Storage | Storage | Front Multi-Function Storage Box | |
| Internal Storage | Internal cabinet,lower part of the sofa | ||
| Alarm System | Alarm Sensor | Carbon monoxide sensor | |
