Technical Specifications
| Category | Details |
|---|---|

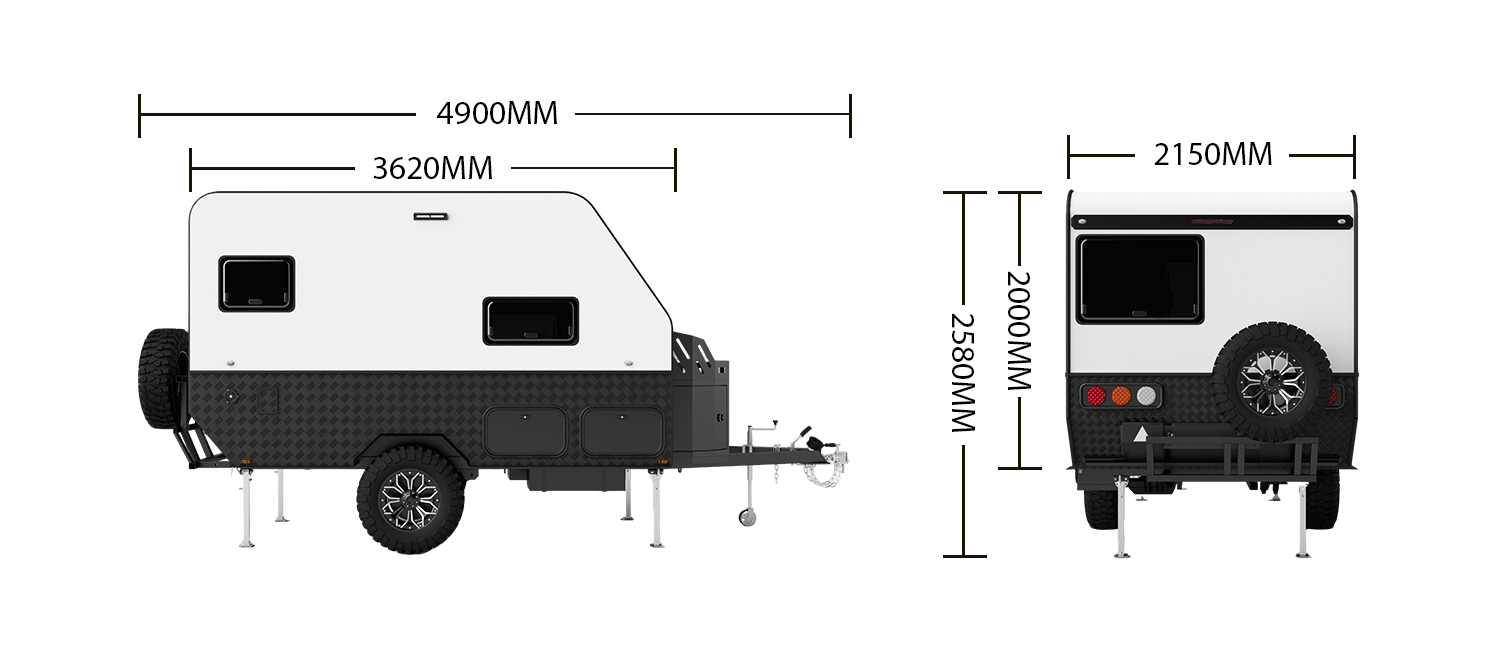

| Dimensions | L 4900×W 2150×H 2580mm (16×7×8.5 ft) |
| Weight | Dry: 1400kg / ATM: 2400kg / Tow capacity: 2700kg |
| Chassis | Galvanised frame + 4 stabilizer legs + adjustable jockey wheel |
| Brakes/Safety | 10" electric brakes with hand brake + safety chain ( Brochure: 12") |
| Exterior | 2m side awning + rubber mudguards + front/left/right lockable storage |
| Electronics | Push-button control panel + LED lighting + 240V/12V USB sockets |
| Entertainment | LCD TV with folding bracket + 2 internal audio speakers |
| Kitchen | 100L 12V refrigerator + gas bottle holders |
Go Anywhere You Wanna
1. Rugged Off-Road Capability
360° off-road coupling & independent suspension
High ground clearance (530mm) with 16" alloy wheels & 265/75R16 off-road tyres
Galvanised chassis for extreme corrosion resistance

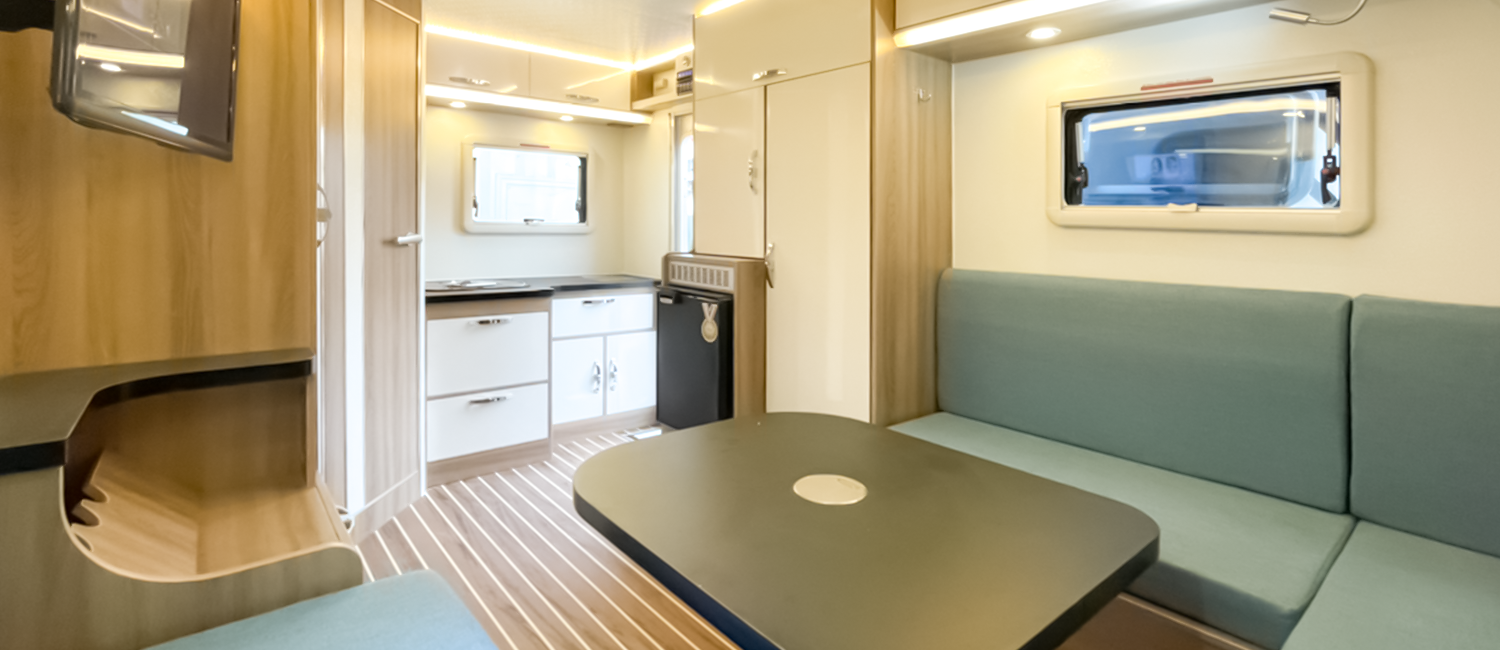

2. Smart Space Design (2-3 Sleeps)
Convertible U-shape sofa → Queen bed (1500×2000mm) + sponge mattress
Separate bathroom with portable toilet, shower & wash basin
Foldable kitchen: 80W induction cooker + pull-out gas stove + stainless steel sink
3. All-Weather Self-Sufficiency
Power: 200Ah lead-acid battery + 2000W inverter + solar readiness
Water: 100L freshwater + 80L greywater tanks + 12V 10L electric water heater
Climate: Household AC + automatic cooling system + electric fan
4. Premium Build Quality
Lifetime structural warranty
Sandwich composite panels (lightweight & insulated)
Vinyl flooring & eco-friendly painted cabinets

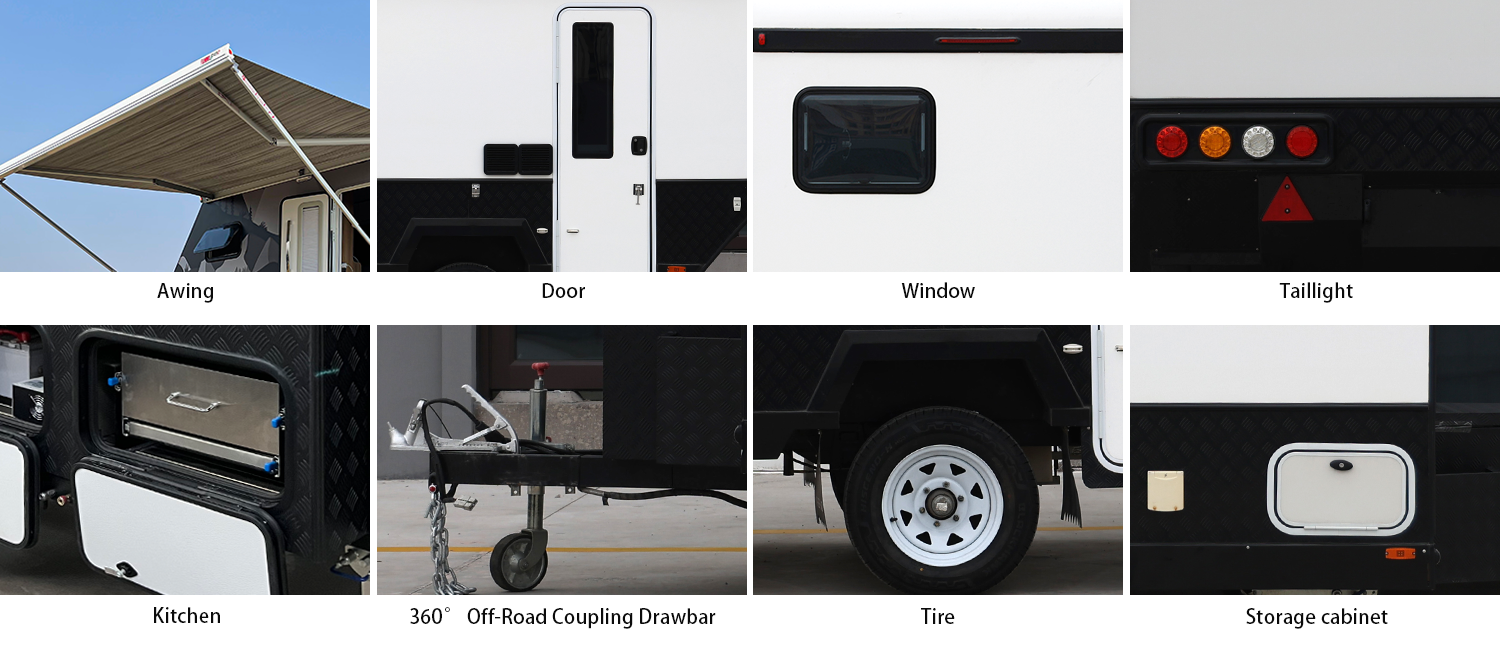

| Standard Configuration Introduction | |||
| Chassis&Body | Chassis | Galvanised | |
| Drawbar | 360° Off-Road Coupling | ||
| Plug | 7pin connector | ||
| Brakes | 10'' Electric brakes with Hand Brakee | ||
| Retainer | Safty Chain | ||
| Wheels&Tyres | 15” Alloy Wheels with 215/75R15 Off Road Tyres | ||
| Body Material | Sandwich composite board structure | ||
| Suspension | Independent suspension | ||
| Jockey Wheel | Adjustable guide wheel | ||
| Stabilizer Leg | Stabilizer Leg x4 | ||
| Awing | 2m Side Awing | ||
| Mudgaurd | Rubber Mudguard | ||

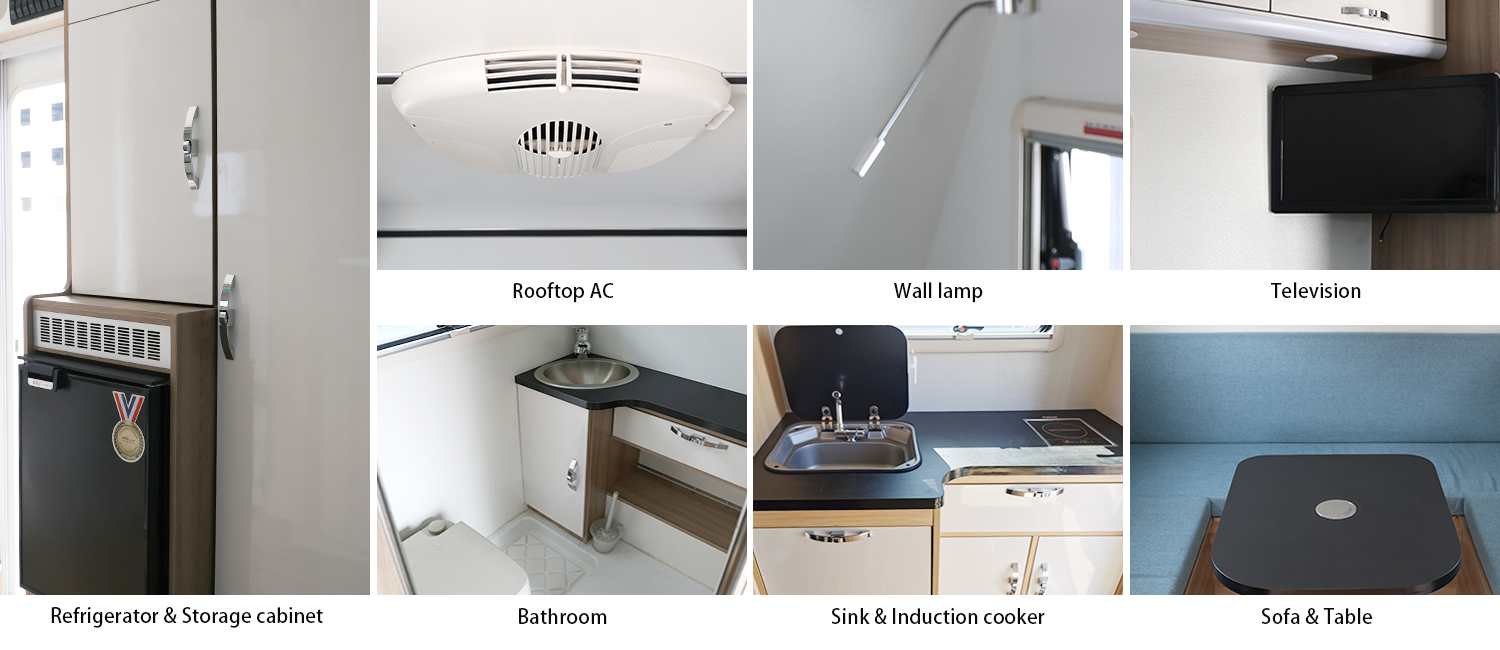

| Interior | TV Systerm | TV Folding Bracket | |
| Sleeping Area | U Shape Sofa+ Sponge Mattress 1500*2000mm | ||
| Leisure Area and Cabinet | Environmental Friendly Paint Free Board | ||
| Floor | Vinyl Flooring | ||
| Electric System | Battery | 200AH Lead-Acid Battery | |
| Inverter | 2000W Inverter | ||
| Refrigerator | 12V 100L Refrigerator | ||
| AC | 1Hp Household AC | ||
| Sound System | Internal Audio ×2 | ||
| Fan | Electric Ventilator | ||
| Heat dissipation | Automatic Cooling System | ||
| Control panel | Rocker Switch | ||
| Lighting | Internal LED Lighting System, External lighting | ||
| Socket / USB Socket | 240V socket. 12V USB Socket | ||
| Kitchen System | Induction cooker | 80W Induction Cooker | |
| Gas Stove | External Pull-out Gas Stove with Windbreak | ||
| Gas Bottle Holders | Gas Mounting Bracket | ||
| Sink | Stainless Steel Sink with Lid + Folding Faucet | ||
| Water System | Water Tank & Accessories | 100L Clean Water Tank, 80L Grey Water Tank and Lower guard plate | |
| Water Pump & Accessories | Electric Water Pump, Pressure Stabilizing Pipe | ||
| Bath Room | Shower、Wash basin、Portable Toilet | ||
| Water heater | 12V 10L Electric Water Heater | ||
| Storage | Storage | Front Storage Compartment, Left and Right Storage Compartment with Lock | |
