Camper Granny Flats

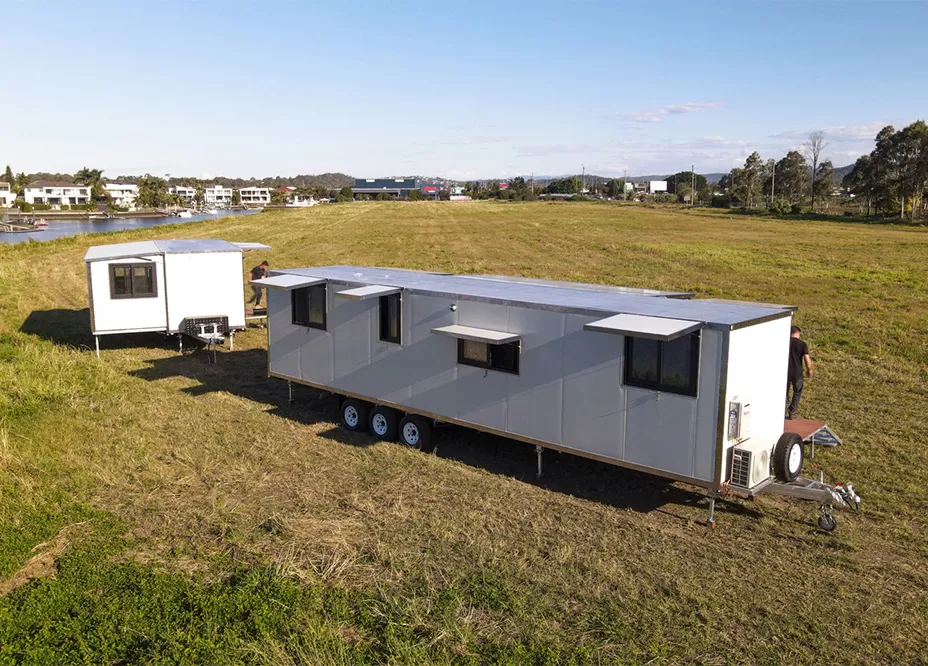

10.9m MOBILE CABIN / TINY HOME

Your New Expandable Towable Mobile Cabin / Tiny Home on Wheels
NOTE: Standard fitted to 3.5T or 4.5T rated trailer
Perfect for a home office, granny flat, holiday accommodation, pool house, or even just as an extra room for the kids, teenagers, and even grandparents. There are hundreds of possible uses for our mobile cabins! As a towable ‘trailer’ no council building permit is generally needed. Ready to connect to power! Fully plumbed & ready to be connected to greys system or septic. We deliver Australia-wide!
Total Dimensions: L: 12.5m x W: 2.35m x H: 3m

Power & Lighting

● Ready to connect to power

● Fully wired for 15amp circuit system with breaker switch (same plug-in as most caravans)

● Varied LED ceiling lights and switches

● Several double power points

● Antenna point connection installed


Kitchen

● Fully fitted kitchen including all residential fittings

● Custom underneath & overhead cabinetry & draws with soft close hinges

● Large stainless bowl sink with drain board

● Custom stone bench top colours available

● Black fitting for taps and handles

● Optional 2 or 4-burner gas stove top & range hood with fan & light

● Optional microwave or washing machine provisional spaces can be added

Please note kitchen cabinetry and design differs with each cabin size (as desired per floor plan) but can all be customised to best suit your needs!


Bathroom

● Fully fitted bathroom including all fittings

● Shower (900mm x 900mm) with sliding glass door

● Large rain fall shower head

● Ceramic residential toilet with soft close lid

● Sink with vanity & storage beneath

● Over sink cupboard with mirror

● Black fitting for taps, handles, and shower head

● Linen cupboard (dependent on bathroom size)

● Double GPO power points

● Plumbing ready to be connected to septic or self-contained option


Windows & Doors

● All double-glazed for extra insulation

● Including hard mess fly-screen and roller blinds

● Protective awnings over each window for additional security (excludes expandable section)


Flooring

● Custom bamboo flooring

● With 75mm thick full insulation beneath


Framing & Walls

● Constructed with 75mm thick fully insulated paneling (EPS sandwich paneling)


Dimensions & Weights

10.9m MOBILE CABIN / TINY HOME

10.9m MOBILE CABIN / TINY HOME


Exterior Details

● Decking fold-out platform (2m x 1m)

● Stainless steel stairs with underneath storage

● Awnings with struts over all windows for extra security and protection (excludes expandable section)

● 75mm thick insulated EPS sandwich panelling

● LED exterior light

● Up to 2m wide sliding glass door for entry

● Heavy-duty 500kg rated stabiliser legs (varied on cabin size)


Trailer Specifications

● 3.5T rated dual-axle or 4.5T rated tri-axle custom built trailer

● 195/R14 tyres and rims including spare tyre

● Electric brakes on all wheels

● Break-away system fitted - road ready

● 50mm or 70mm coupling

● Varied heavy duty stabiliser legs

● Expandable section with stabiliser legs and strut assisted

● Hot dip galvanised custom trailer

● Standard driving brake lights, indicators, and reflectors

● 4-6 high wind anchor points welded on the trailer chassis

● VIN number stamped and compliance approval, ready for registration in all states


Additional Info

● We deliver nation-wide and use third-party freight for all interstate deliveries

● 12 month parts warranty

● 5 year structural warranty

● Standard third party appliance and component supplier warranties apply
